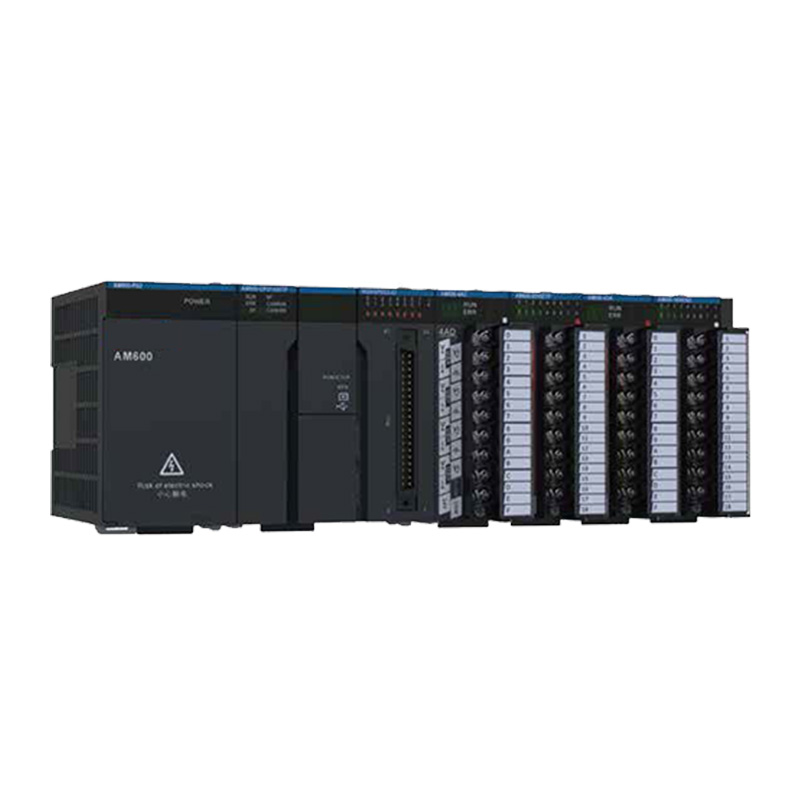

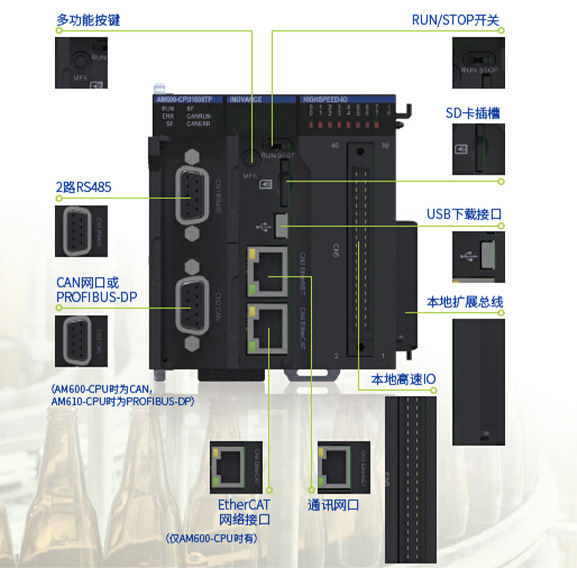

AM600-CPU1608TP focuses on motion control and process control

Powerful motion control function: 32 motion controls based on EtherCAT bus;
One stop solution: local IOa company expansion, open the general Ethernet in distributed IO based on EtherCAT or CAN, complete with serial ports, and the host has its own pulse motion control;
Simple and easy to use: full visual configuration configuration, supporting 6 programming languages, supported by modern engineering management software, is also full of edge for complex applications;
Rich options: high-precision analog module, temperature control module, IOC module, distributed IOC communication module.

AM610-CPU1608TP Focused Process Control

Support thruster DP: control up to 124 slave stations;
One stop solution: local IOC expansion, based on fieldbus DP distributed IO, universal Ethernet, serial port, host with pulse motion control;
Simple and easy to use: full visual configuration configuration, supporting 6 programming slogans, supported by modern engineering management software, is also full of edge for complex applications;
Rich options: high-precision analog module, temperature control module, IOC module, distributed IOC communication module.

Product Selection

Order Code	Model	Introduction to functions and features
01440010	AM600-PS2	Power module, 220Vac power input, output 2A/24V
01440014	AM600-CPU1608TP	DcCPU module, EtherCAT/CANopen/CANlink, LAN, RS485
01440016	AM610-CPU1608TP	CPU modular, PROFIBUS-DP,LAN,RS485
01440005	AM600-1600END	Switching input module, 15 channels of input, 24Vdc detection voltage, supporting source or drain type
01440003	AM600-0016ETP	Switch output module, 16 PNP type tube output, maximum current 500mA@24Vdc
01440018	AM600-0016ETN	Switching output module, 15 NPN type tube output, maximum current 500mA@24Vdc
01440017	AM600-0016ER	Switch output module, 15 relay outputs, constant current 2A@250Vac
01440006	AM600-4AD	4-channel analog input module, 16bt resolution, 0.1% error closing accuracy
01440007	AM600-4DA	4-channel analog output module, 16bit resolution, 0.1% error closing accuracy
01440008	AM600-4PT	4-channel thermal resistance temperature detection module, 24bit resolution, supporting PT100/PT1000/Ni1000 thermal resistance, 0.1% C resolution
01440009	AM600-4TC(开发中)	4-channel thermocouple temperature detection module, 24bit resolution, supporting J/K/R/5 thermoelectric generation, 0.1C resolution
01440013	AM600-RTU-ECT	EtherCAT slave module, up to 16 10 modules can be expanded
01440012	AM600-RTU-DP	DP slave module, up to 16 I0 modules can be expanded
01440011	AM600-RTUCOP	CANopen slave module, which can expand up to 16 10 modules
01440028	AM401-CPU1608TP	CPU module, EtherCAT (4-axis)/CAN, LAN, RS485 * 1, PNP output
01440032	AM401-CPU1608TN	CPU module, EtherCAT (4-axis)/CAN, LAN, RS485 * 1, NPN output
01440029	AM402-CPU1608TP	CPU module, EtherCAT (8-axis)/CAN, LAN, RS485 * 1, PNP output
01440031	AM402-CPU1608TN	CPU module, EtherCAT (8-axis)/CAN, LAN, RS4851, NPN output
01440025	AM600-0032ETN	32 channel quality tube output, NPN type, leading out electric winding and wiring with terminal block
01440023	AM600-3200END	32 Remote channel input module, which supports source type drain type, needs to lead out electrical system and wiring board
01440026	AM600-8TC	8-channel thermocouple temperature detection module, 24bit resolution, supporting J/K/R/5 thermoelectric generation, 0.1C resolution
01440027	AM600-0808ETNE	8-input 8-output NPN type, 24V power supply, EtherCAT remote IO slave station
01440030	AM600-1516ETNE	16 input 16 output NPN type, 24V power supply, EtherCAT remote IO slave station
01440033	AM600-ETU-ECTA	EtherCAT slave module, with automatic scanning function, can expand up to 15 IO modules

Selection Of Accessories

Order code	Model	Functions Characteristics
15300119	X201-5-0.5	AM600 10 outgoing cable, 0.5m long
15300193	X210-5-2.0	AM600 10 outgoing cable, 2m long
15020452	T024-K	AM50010 terminal block
15050180	FCN-40	AM500 10 outgoing welding type

Product Specifications

Order code	AM600	AM610
main processor	Cortex AB processing channel, main frequency 1GHz	Cortex AB processing channel, main frequency 1GHz
User program capacity	10MByte maximum	10MByte maximum
User data capacity	8MWord	8MWord
Standard bus	EtherCAT Time Bus Master Station LAN, Modbus/TCP CANopen/CANlink	EtherCAT Time Bus Master Station LAN, Modbus/TCP -
USB port	Support program download and monitoring debugging	Support program download and monitoring debugging
SD卡	Support data recording/user program downloading	Support data recording/user program downloading
Municipal communication port	RS485X2	RS485X2
Accessible module of main frame	16	16
Expansion Rack	EtherCAT 125 racks	PROFIBUS-DP mode
Maximum 10 configurations and their refresh time	32000 points, refresh time less than 7 ms	4095 points, refresh time less than 30ms
Simultaneously control the service shaft	EtherCAT bus mode 32 axis *, 4rms refresh time	-
Cam control	EtherCAT bus mode, 16 axis *, 2 rms refresh time	-
Command time	Bit operation execution time: 1ms Word operation execution time: 4ms Fixed point number operation time: 80ms Floating point number operation time: 150ms	Bit operation execution time: 1ms Word operation execution time: 4ms Fixed point number operation time: 80ms Floating point number operation time: 150ms
SD element	10000	10000
SM element	100008	100008
Supports interrupt IO	passageway	8 passageway
Interrupt response	250us	250us
* 4 beats for AM401 and 8 beats for AM402

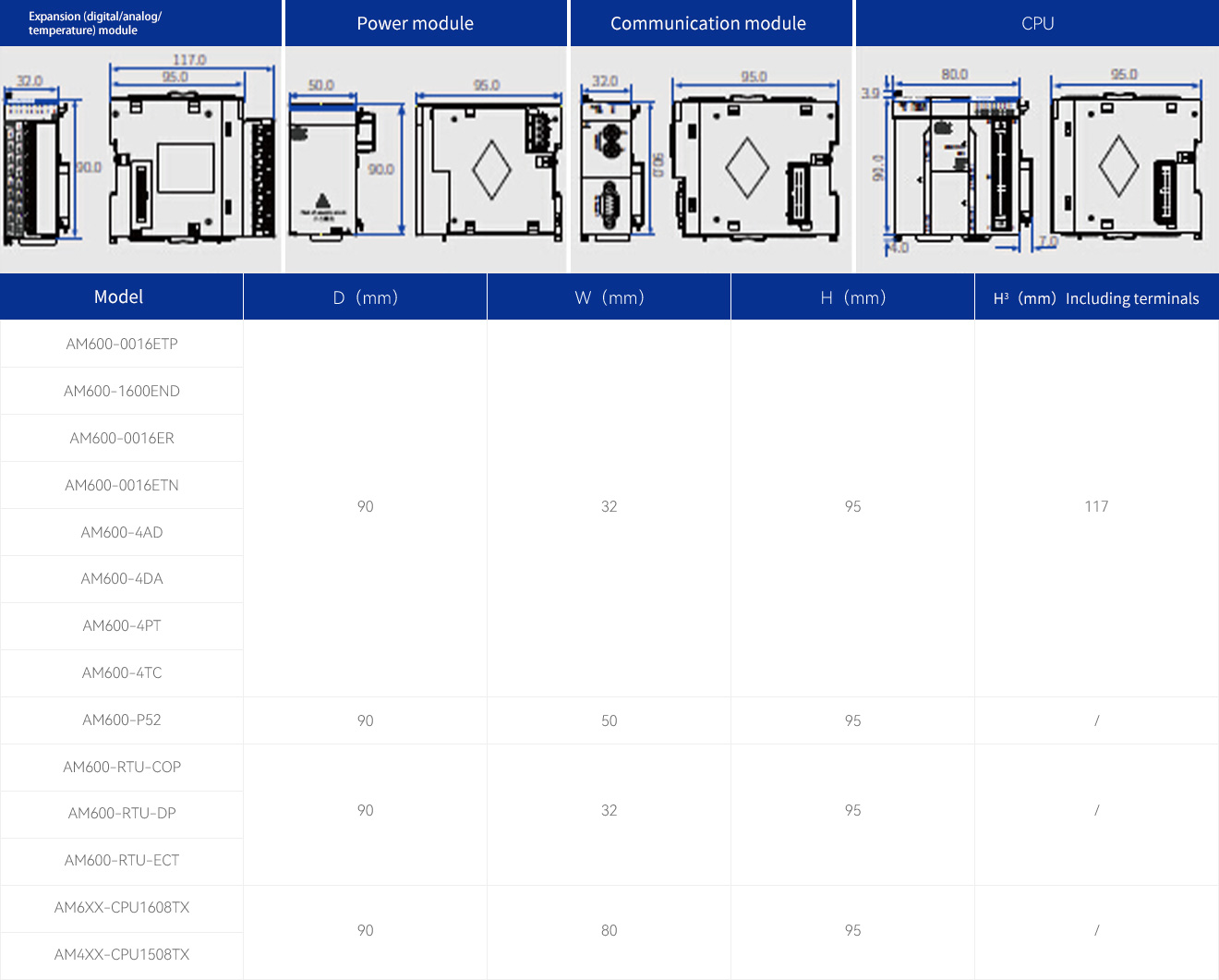

Installation Dimensions
